SOG Ventilator Kit Type H for C220 Through Door White Housing Caravan Motorhome
By installing the SOG II kit it means that Toilet Fluids and Special Toilet Rolls are no longer required.
Through Door Version
The SOG kit increases the airflow to the Toilet waste tank (similar to that of an aeration tank at a treatment plant), thus ensuring that waste is broken down quickly.
The SOG II comprises a 12V Fan, Remote Carbon Filter, Hoses and various adaptors.
The SOG II Filter is set remotely in the vehicle and the venting is done automatically.

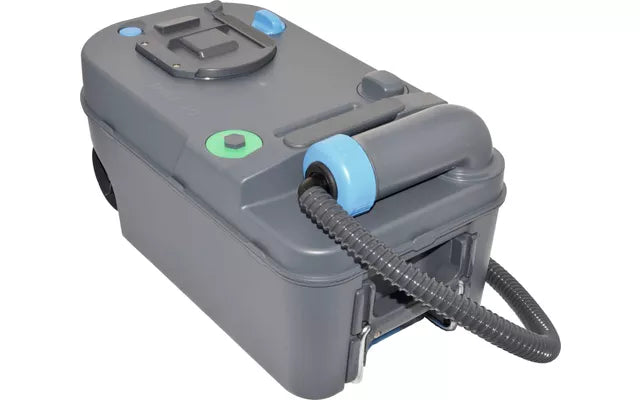

To be used with Thetford Toilet Cassettes C220 eg used on Swift Voyager
Manufacturer SKU: 402 011 0
12 V venting - the clean, odorless solution!
A specially developed small high-performance fan, which switches on automatically when the toilet slide is opened, creates a negative pressure in the waste-holding tank:
This creates a "suction" at the slider opening that draws in fresh air, as well as odors generated during use, and directs it outside. The drawing in of air acts as a seal and 100% prevents all unpleasant foul gases from rising from the tank. Thus, each time the cassette is used, more air (oxygen) is drawn into the cassette. Water is also supplied each time through the flushing process. However, after the slider is automatically switched off and closed, there is permanent aeration - i.e. oxygen supply - through a pipe or hose connection that is always open to the outside, which thus promotes the further decomposition process.
SOG DOOR VARIANT

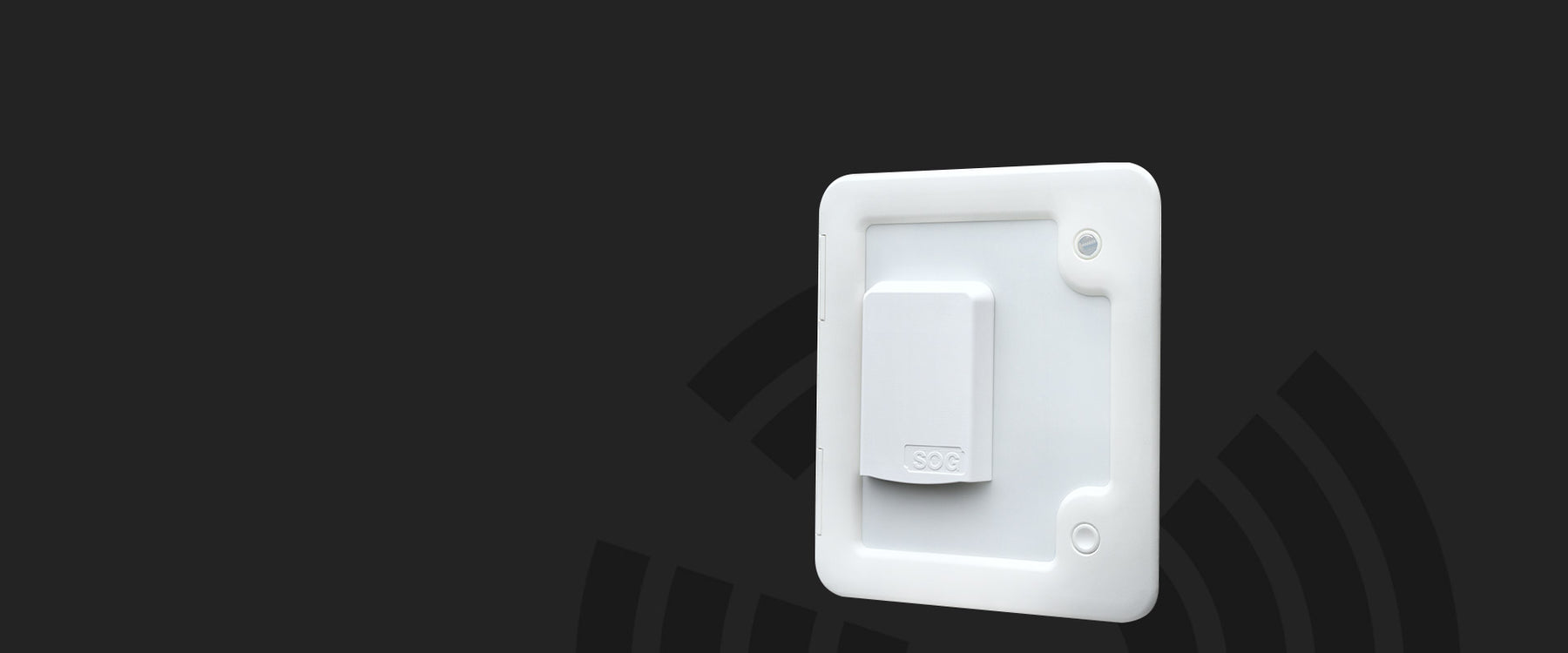

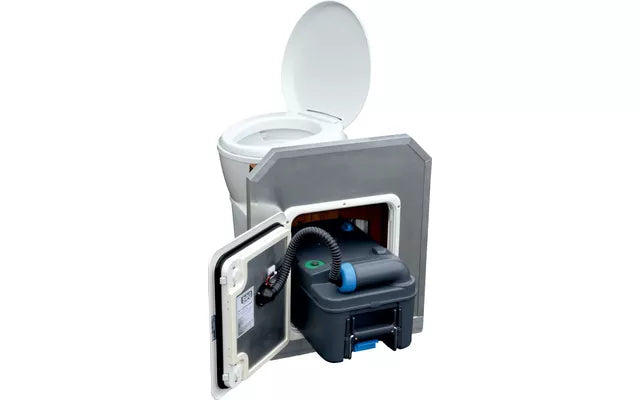

The fan is mounted directly inside on the disposal flap. The housing with activated carbon filter is mounted on the outside. The attractive plastic housing is available in white, light gray, dark gray and black and can also be painted in the color of the car.
Advantage:
SOG for service door is the easiest to install venting option.
Contents of the SOG door kit:
Fan - the heart
Adapter parts
Cable set with switch for power supply of the fan
complete small parts for assembly
very differentiated assembly instructions
Filter housing
Charcoal filter mat
